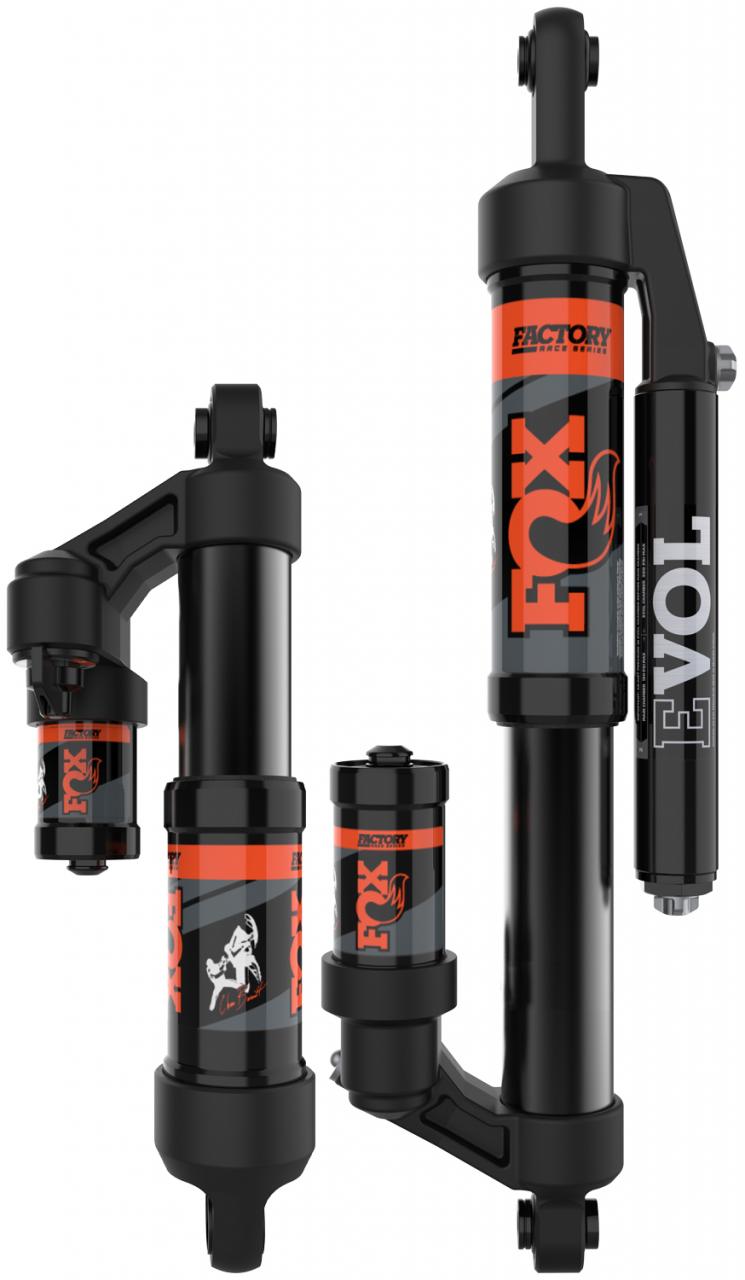

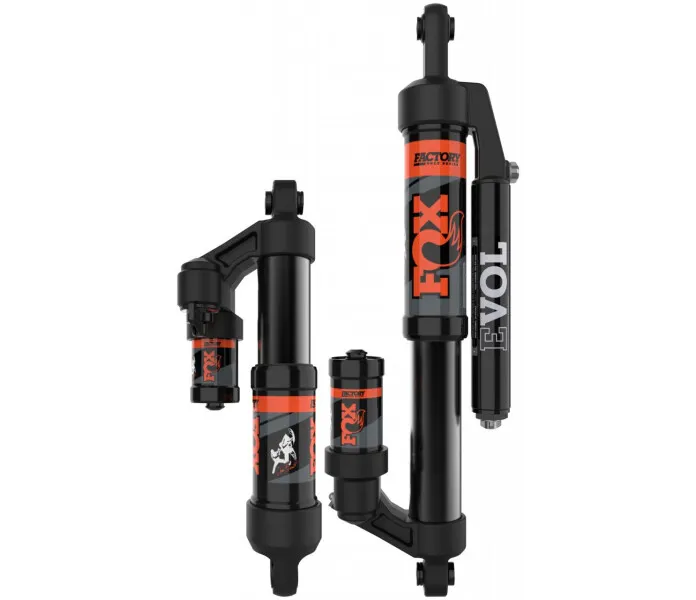

FOX Telaston iskarit: Float 3 QS3 LW/EVOL QSL-QSR LW RMK KHAOS Matryx (Burandt)
Tuotekoodi: 971-853-21-248
LIGHTWEIGHT!
Application: RMK Khaos
Fitment: 2020-2024
Adjustments:
FLOAT air spring (front and rear track)
EVOL air chamber (rear track)
QS3-3 position compression (front track), with lockout mode (rear track)
QSR-3 position rebound (front track)
EVOL air chamber (rear track)
QS3-3 position compression (front track), with lockout mode (rear track)
QSR-3 position rebound (front track)
Lue lisää
Kuvaus
Features:
Burandt specific calibration
Optimized lightweight shock design
Spiral groove bypass
One-piece, aluminum spherical bearings
High-flow velocity-sensitive damping
Fully re-buildable and re-valvable
Air Spring Pressures:
Front Track Main - 25psi
Rear Track Main - 155psi
EVOL - 170psi
Top Mount: Eyelet
Bottom Mount: Eyelet
Rebuild P/n: FT 803-01-569; RT 803-01-574
Reservoir: Piggyback
Replaces Part Number: 853-21-010
Front Track Extended Length: 11.9500
Front Track Compressed Length: 8.4900
Front Track Travel: 5.5700
Rear Track Extended Length: 11.9500
Rear Track Compressed Length: 10.9400
Rear Track Travel: 5.5700
Fitment notes: Track (Front & Rear)
