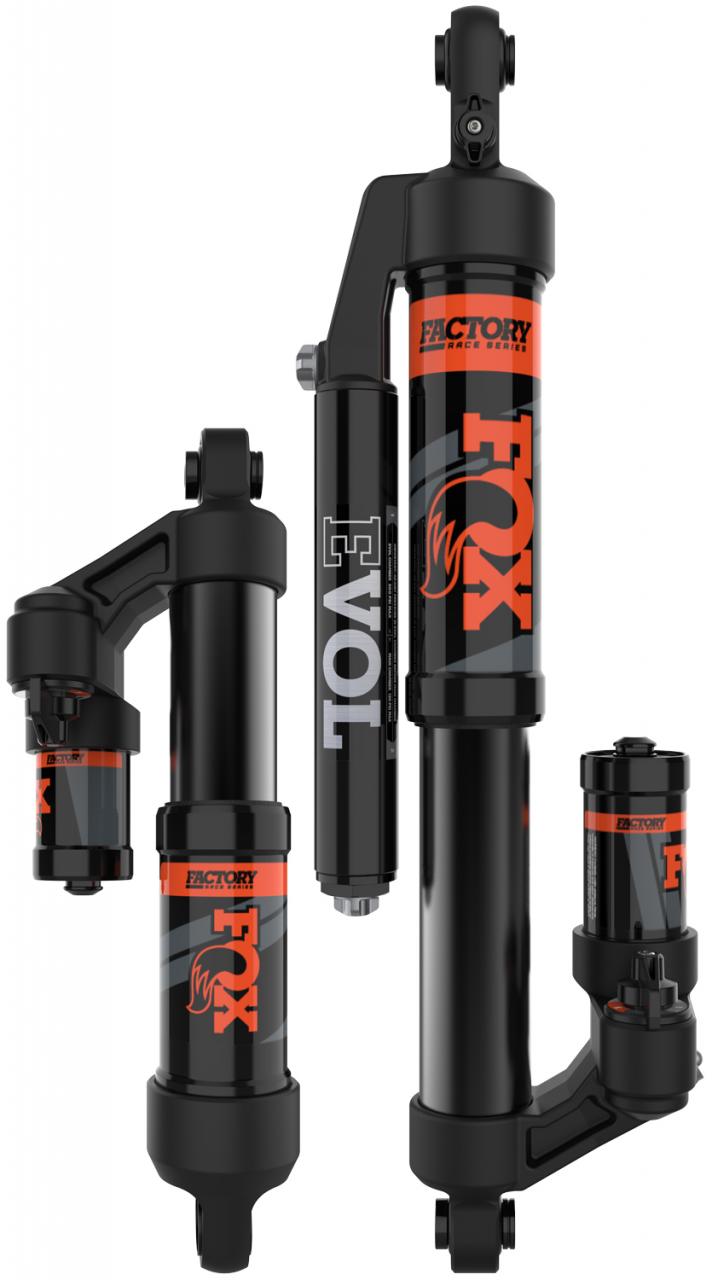

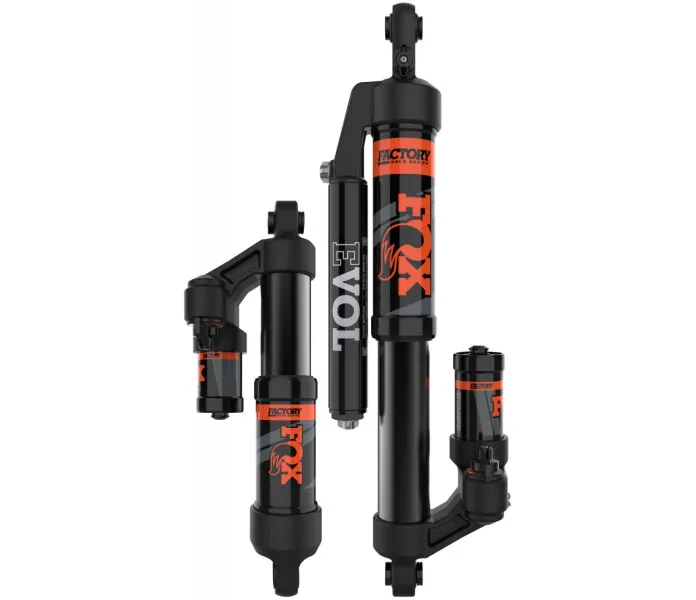

FOX Telaston iskarit: Float 3 QS3 LW/EVOL QSL-QSR LW PRO-RMK Matryx

Adjustments:

FLOAT air spring

EVOL air chamber

QS3–3 position compression (front track), with lockout mode (rear track)

QSR–3 position rebound

Features:

Optimized lightweight shock design

Spiral groove bypass

One-piece, aluminum spherical bearings

High-flow velocity-sensitive damping

Fully re-buildable and re-valvable

Air Spring Pressures:

Front Track Main - 25psi

Rear Track Main - 140psi

EVOL - 145psi

Top Mount: Eyelet

Bottom Mount: Eyelet

Rebuild P/n: FT 803-01-572; RT 803-01-574

Reservoir: Piggyback

Front Track Extended Length: 11.4500

Front Track Compressed Length: 8.1900

Front Track Travel: 5.5700

Rear Track Extended Length: 11.4500

Rear Track Compressed Length: 10.9400

Rear Track Travel: 5.5700

Fitment notes:Track (Front & Rear)
